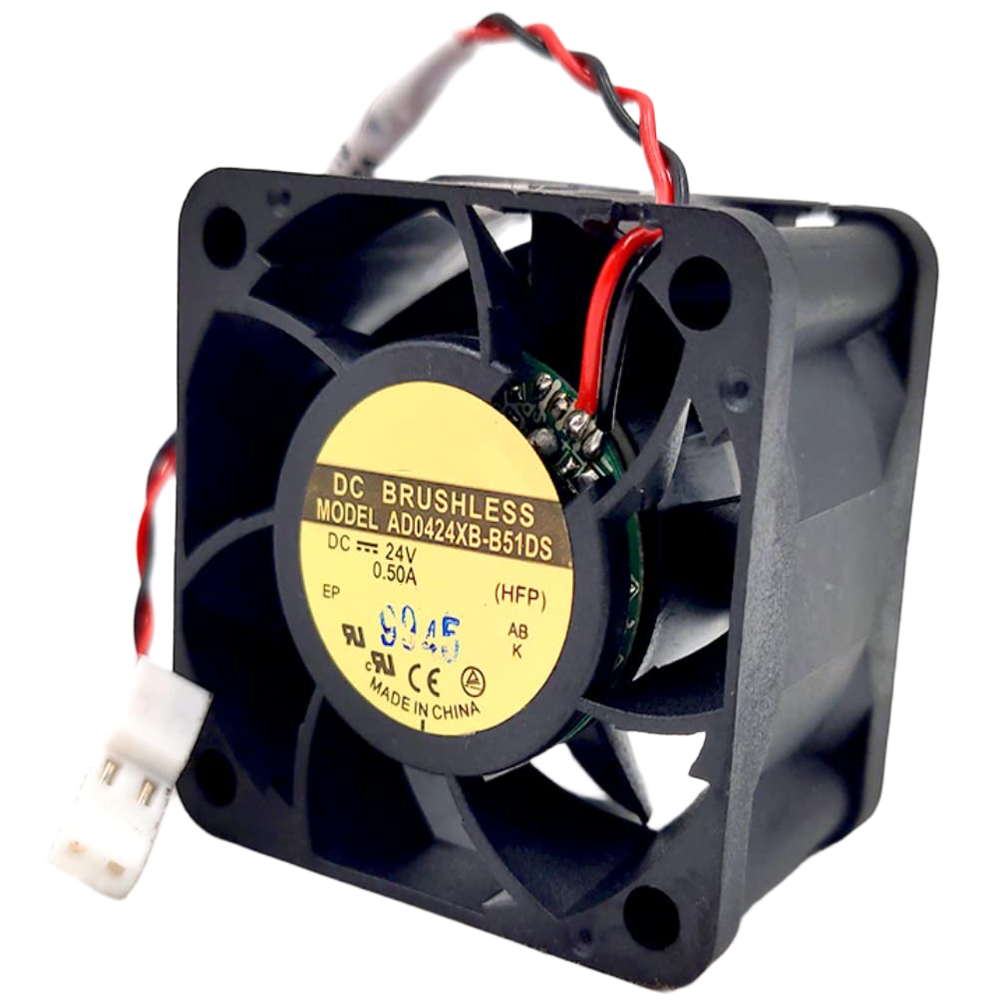

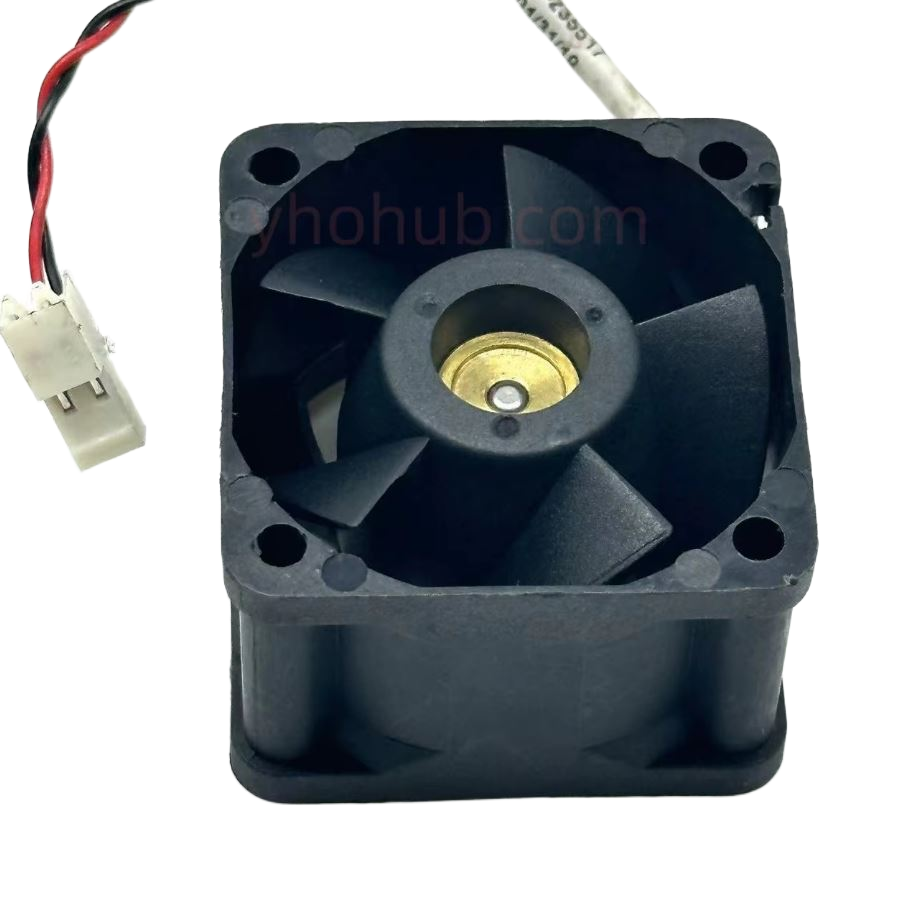

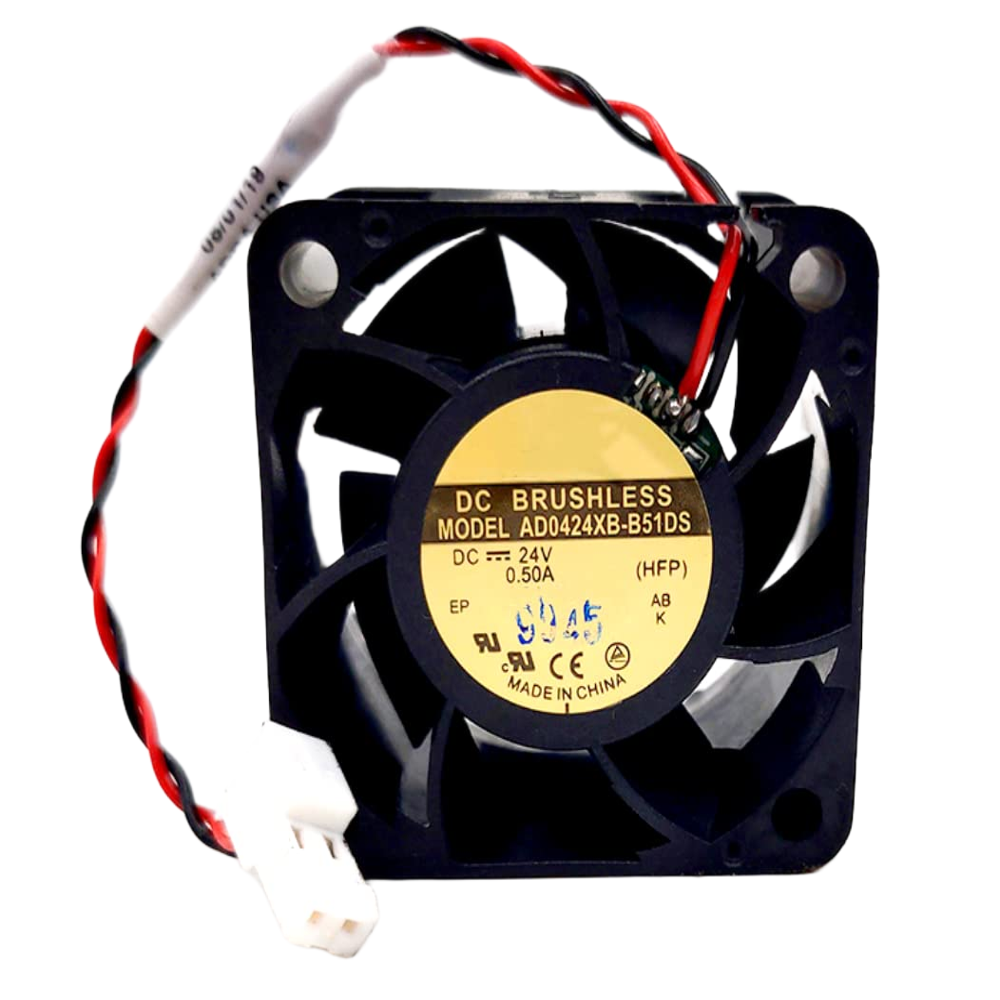

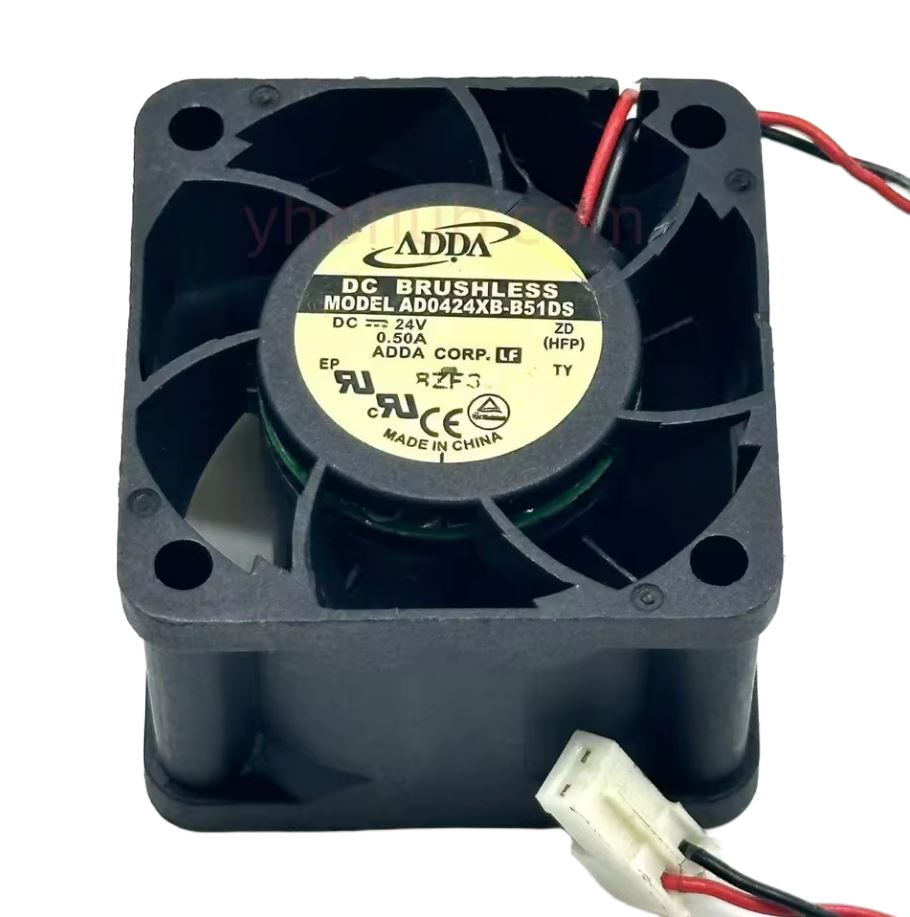

ADDA AD0424XB-B51DS DC Brushless Cooling Fan

ADDA AD0424XB-B51DS DC Brushless Cooling Fan Specification

Power Supply
DC

Product Type
DC Brushless Axial Cooling Fan

Power Rating
12 W

Application
Inverters, UPS Systems, Servo Drives, Servers, Telecom Equipment, Medical Equipment, Industrial Control Panels, Power Supplies

Rated Voltage
24 Volt (V)

Size
40 X 40 X 28 mm

Dimension (L*W*H)
40 X 40 X 28 Millimeter (mm)

Color
Black

Weight
55 Grams (g)

Warranty
1 YR

Phase
Single Phase (DC)

Rated Current
0.50 Ampere (amp)

Features
High Airflow, High Static Pressure, Double Ball Bearing, Energy Efficient, Low Noise, Long Service Life, Continuous 24 7 Operation, Auto Restart Protection, Maintenance-Free Design, Compact Industrial Construction.

Material
PLASTIC

Current Rating
0.50 A

ADDA AD0424XB-B51DS DC Brushless Cooling Fan Trade Information

Minimum Order Quantity
2 Pieces

Payment Terms
Paypal

Supply Ability
160 Pieces Per Month

Delivery Time
1 Week

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About ADDA AD0424XB-B51DS DC Brushless Cooling Fan

Brand: ADDA
Model: AD0424XB-B51DS
Product Type: DC Brushless Axial Cooling Fan
Color: Black
Voltage: 24 V DC
Phase: Single Phase (DC)
Power: 12 W
Current Rating: 0.50 A
Rotational Speed: Other (15,000 RPM)
Blade Sweep: 40 mm
Fan Type: DC Axial Cooling Fan
Number of Blades: 7
Blade Material: PBT Engineering Plastic
Frame Material: PBT Thermoplastic (UL94V-0)
Bearing Type: Double Ball Bearing
Motor Type: Brushless DC Motor
Lead Wire: 3 Wire
Airflow: 25.5 CFM (0.72 m/min)
Static Pressure: 1.64 in-HO
Noise Level: 55 dBA
Operating Temperature: -15C to +70C
Life Expectancy: Up to 40,000 Hours
Mounting Type: Standard 4-Hole Mounting
Dimensions: 40 40 28 mm (1.57 1.57 1.10 in)
Net Weight: Approximately 55 g
Package Dimensions: 8 8 5 cm (3.15 3.15 1.97 in)
