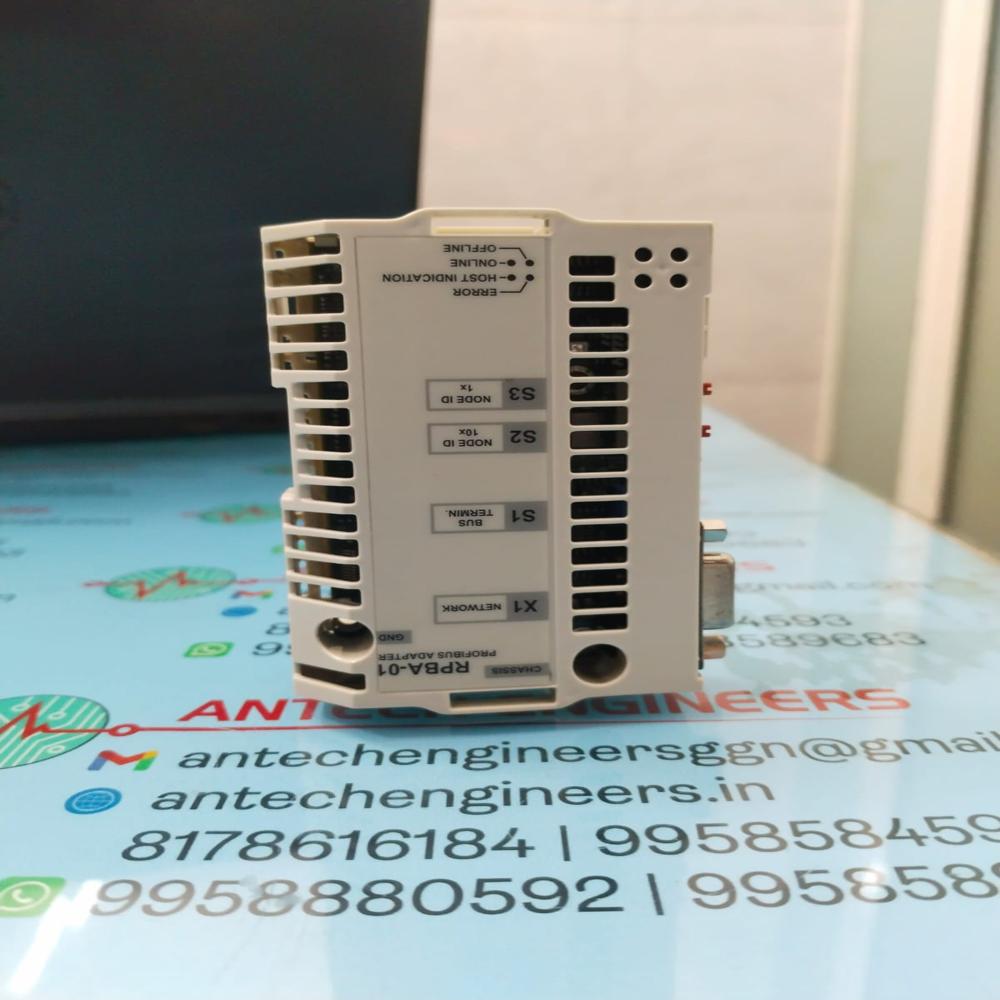

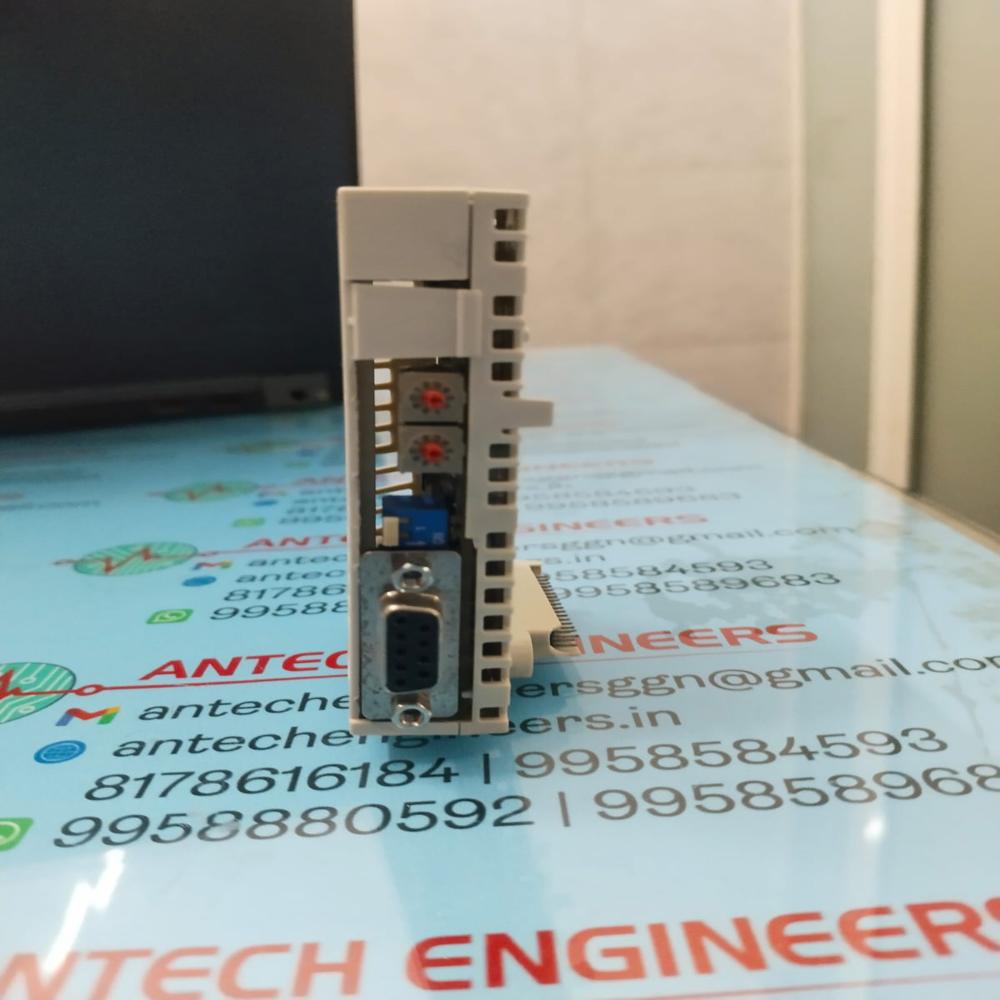

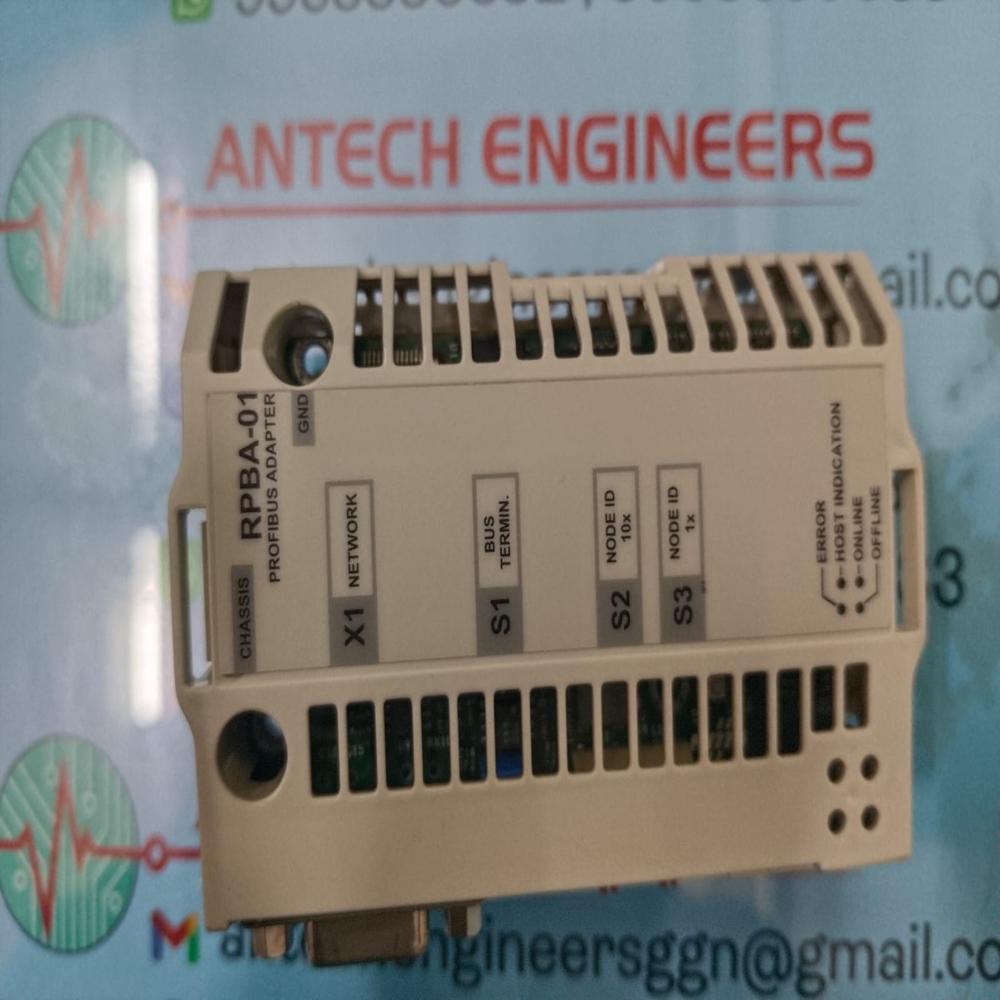

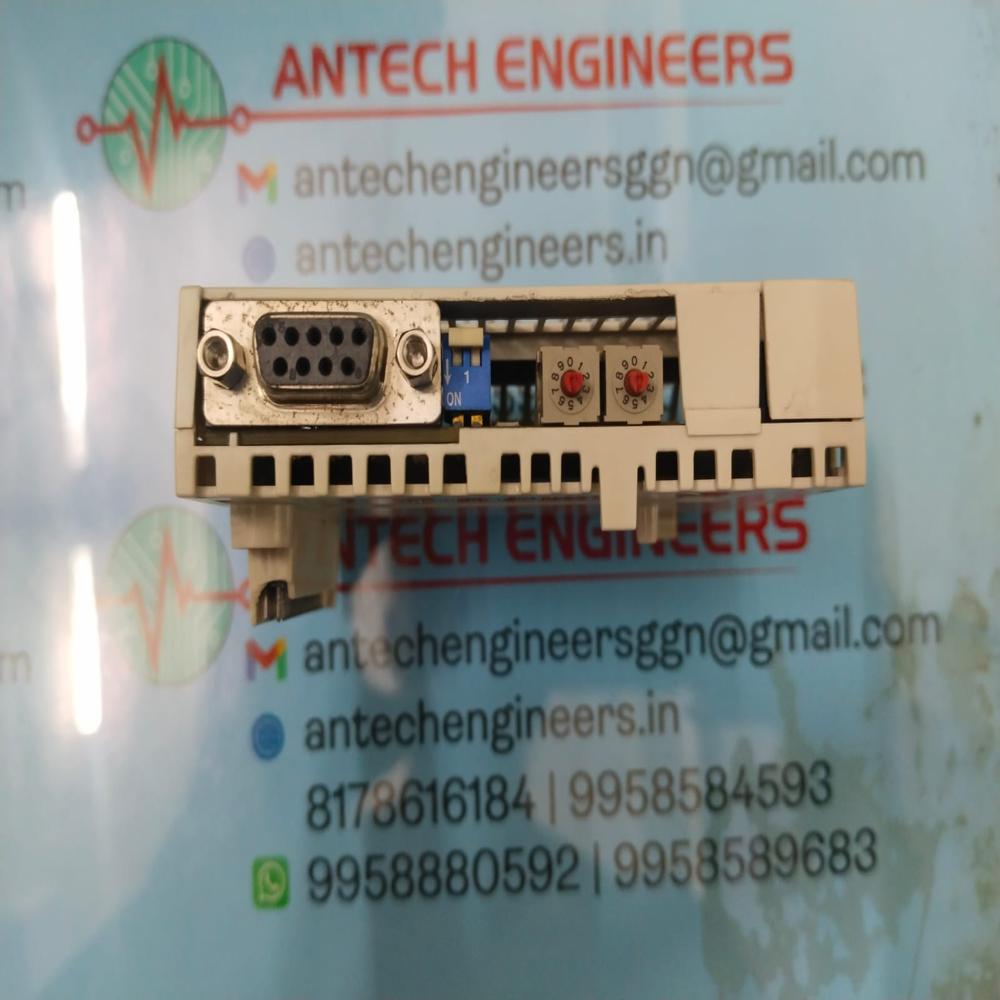

ABB RPBA-01 Profibus DP adapter module

ABB RPBA-01 Profibus DP adapter module Specification

Features
Plug-in module, reliable PROFIBUS interface, ABB compatibility

Input
Profibus DP network (via 9-pin D-sub connector)

Interface
Profibus DP (9-pin D-sub connector)

Display Type
No display

Processor Speed
Not specified by manufacturer

Components
Adapter module, connector slot, onboard circuitry

Usage
Industrial automation, connectivity of ABB equipment to PROFIBUS systems

Power Source
Supplied by host (ABB drive/controller)

Response Time
Real-time data exchange depending on network performance

Output
Digital data to ABB drive/database

IP Rating
IP20 (when installed)

Operating Temperature
0C to +55C

Power Supply
From connected ABB device / drive slot

Product Type
Fieldbus Adapter Module

Application
Connects ABB drives/controllers to PROFIBUS-DP networks

Rated Voltage
24 V DC (typical for accessory modules)

Supply Voltage
24 V DC (from bus or drive unit)

Size
ABB standard plug-in module size

Dimension (L*W*H)
Approx. 104 mm x 70 mm x 22 mm

Function
Profibus DP communication adapter module for ABB drives and automation devices

Color
Beige / Light Grey

Weight
Approx. 120 g

Current Rating
Approx. 100 mA (typical for profibus modules)

Capacity
Supports one ABB drive connection per module

Thickness
Standard ABB interface module thickness

Frequency
Not applicable (Digital data transmission)

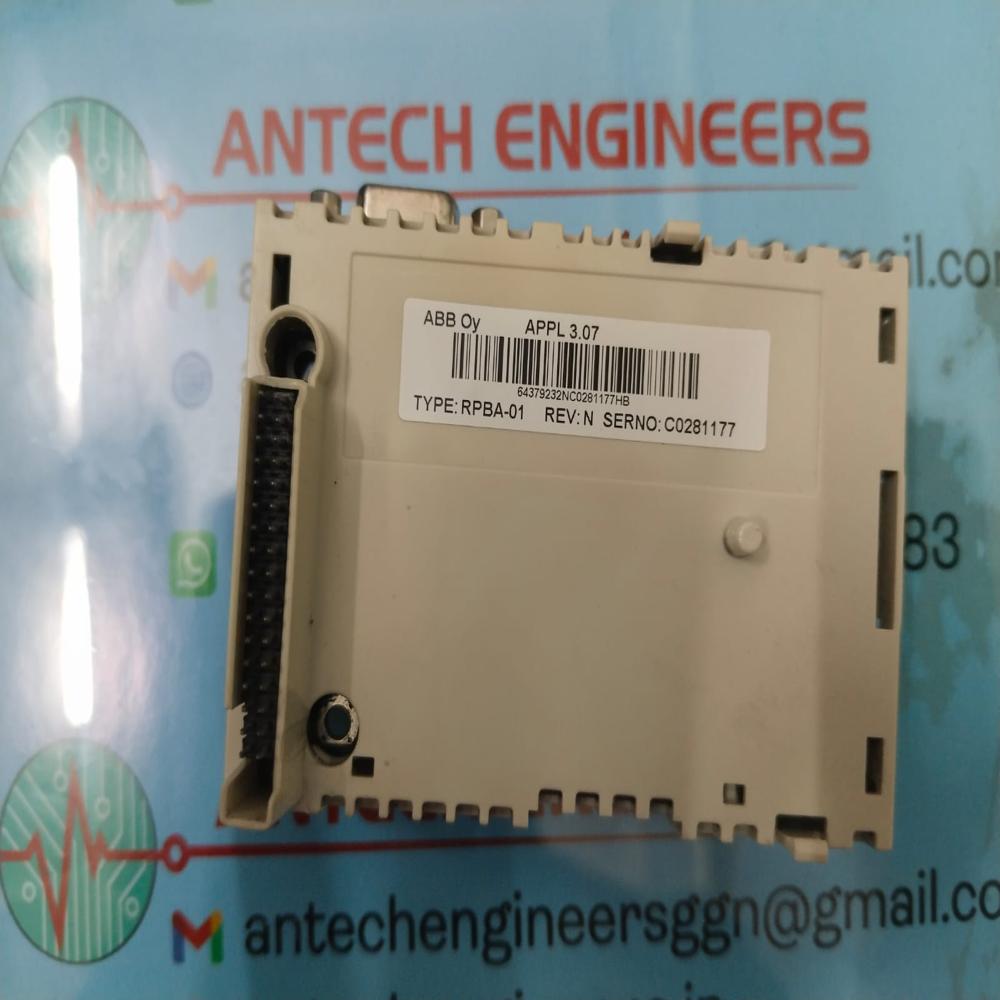

Revision
N

Firmware Version
APPL 3.07

Type
RPBA-01

Serial Number
C0281177

ABB RPBA-01 Profibus DP adapter module Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

ABB RPBA-01 Profibus DP adapter module About

Product Type : PROFIBUS DP Adapter Module

Description : The ABB RPBA-01 is a PROFIBUS DP communication adapter module designed to connect ABB AC drives to PROFIBUS-DP networks. The module enables high-speed data exchange between PLCs, automation systems, and ABB drives, allowing remote monitoring, parameter configuration, fault diagnostics, and process control. It supports both DP-V0 and DP-V1 communication protocols and is widely used in industrial automation, process control, HVAC, water treatment, and manufacturing applications.

Communication Protocol : PROFIBUS-DP

PROFIBUS Version : DP-V0 and DP-V

Transmission Medium : Shielded Twisted Pair RS-485 Cable

Transfer Rate : 9.6 kbit/s to 12 Mbit/s (Auto Detection)

Network Type : Multi-Drop Network

Maximum Nodes : 127 Stations Including Repeaters

Maximum Segment Nodes : 31 Stations per Segment

Data Transmission : Asynchronous Half Duplex

Bus Termination : Built-In

Communication Profile : PROFIdrive

Interface Type : PROFIBUS DP

Node Address Setting : Rotary Switch

Diagnostic Indication : LED Status Indicators

Mounting Type : Drive Option Slot Mounting

Phase : Not Applicable

Voltage Requirement : Powered by Connected ABB Drive

Housing Material : Industrial Grade Plastic

Protection Class : IP20

Operating Temperature : 0C to +55C

Compatible Drives : ABB ACS550, ACS800 and Other ABB Drives Supporting RPBA-01 Communication Modules.

Approximate Dimensions : 90 35 65 mm (9 3.5 6.5 cm / 3.54 1.38 2.56 in)

Effortless Profibus Integration for ABB Drives

The RPBA-01 Profibus DP adapter module bridges ABB drives and Profibus DP systems, streamlining data exchange and networking. This robust module is specifically engineered for quick installation into ABB drive slots, bringing efficiency and reliability to industrial automation projects. Its simple plug-and-play connection via a 9-pin D-sub port speeds up commissioning while maintaining ABB product compatibility.

Versatile and Compact Design

Sporting a compact build (104 mm x 70 mm x 22 mm) and weighing approximately 120 grams, the RPBA-01 fits seamlessly into standard ABB devices. Its 24 V DC supply is drawn directly from the connected drive or controller, eliminating the need for a separate power supply. With IP20 protection when installed and operation between 0C and +55C, it remains suitable for a wide range of industrial environments.

Reliable Performance for Industrial Networks

Engineered to support real-time communication, the RPBA-01 provides responsive and accurate data exchange between ABB equipment and Profibus DP networks. The adapter supports one ABB drive per module and delivers digital output to ensure precise supervision and control. Its design prioritizes stability, interoperability, and ease of maintenance, empowering automation professionals to expand and optimize their systems.

FAQ's of ABB RPBA-01 Profibus DP adapter module:

Q: How do I install the ABB RPBA-01 Profibus DP adapter module into my ABB drive?

A: To install the RPBA-01, power down your ABB drive and insert the module into the designated communication slot according to the drive's user manual. Secure the 9-pin Profibus DP cable to the adapter's connector, then power up the drive for auto-detection and commissioning within your Profibus network.

Q: What benefits does the RPBA-01 provide for industrial automation?

A: The RPBA-01 enables seamless real-time communication between ABB drives and Profibus DP networks, facilitating precise control and accurate monitoring. Its plug-and-play design reduces installation time, enhances system reliability, and supports flexible system expansion within complex industrial environments.

Q: When should I use the RPBA-01 module in my setup?

A: Deploy the RPBA-01 whenever you need to connect an ABB drive, controller, or automation device to a Profibus DP network. It's suitable for both new installations and upgrading existing ABB equipment to leverage Profibus connectivity.

Q: Where is the RPBA-01 module commonly used?

A: The module is widely used in industrial automation environments such as manufacturing plants, processing facilities, and any site where ABB drives must communicate over Profibus DP networks for control or data acquisition.

Q: What process does the RPBA-01 use to transmit data?

A: The RPBA-01 transmits and receives digital data via Profibus DP, using the standard 9-pin D-sub connector for network communication. It interprets Profibus messages in real-time and conveys them to the ABB drive's processor for immediate action.

Q: What is required for the RPBA-01 module to operate?

A: The RPBA-01 requires a supply voltage of 24 V DC, which it receives directly from the connected ABB drive or controller. No auxiliary power source is necessary, simplifying installation and reducing wiring complexity.

Q: How many drives can be connected using a single RPBA-01 adapter module?

A: Each RPBA-01 module supports one ABB drive or controller. For multiple drives on a Profibus DP network, install a dedicated RPBA-01 module in each respective device.
